Robot SCHEDULE Summary

The Robot SCHEDULE Summary gives you a snapshot of the current status of Robot SCHEDULE and its jobs. The information is similar to what you'll see on the Status - Robot SCHEDULE dashboard widget.

To open the Robot SCHEDULE Summary, clicktap Home under the Robot SCHEDULE menu.

It shows the following information:

  • The system name.
  • The status of the Robot SCHEDULE monitor jobs (Robot). Possible statuses:
    • A green icon indicating that Robot Schedule is active. ACTIVE - Indicates that the Robot SCHEDULE monitor jobs have been started; Robot SCHEDULE can submit scheduled jobs
    • A red icon indicating that Robot Schedule is inactive. INACTIVE - Indicates that the monitor jobs have not been started; Robot SCHEDULE cannot submit scheduled jobs.
    • A gray icon indicating that the status of Robot Schedule is unknown. UNKNOWN - Indicates that Robot SCHEDULE is starting or stopping, the monitor jobs were ended, or that Robot SCHEDULE was ended when the RBTSLEEPER subsystem was ended. If the monitor jobs or RBTSLEEPER were ended, the status remains UNKNOWN until Robot SCHEDULE is restarted.
  • The last time Robot SCHEDULE woke up to submit a job and the next time it's scheduled to wake up and submit one. For more information, see Robot SCHEDULE Job Execution.
  • The number of jobs for today in the following categories:
    • Forecasted
    • Active (Running, Delayed, Waiting)
    • Completed (Completed, Failed)

The data is presented differently depending on the size of your browser and your screen. You may see a graph or simply a list.

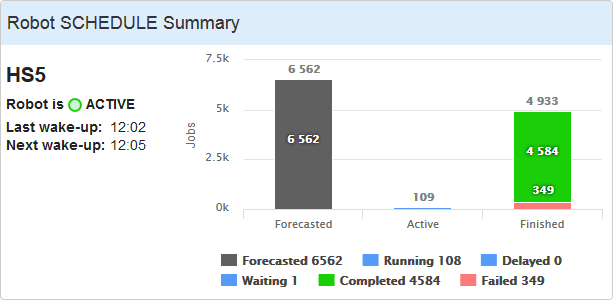

The Robot Schedule Summary as seen on a larger screen.

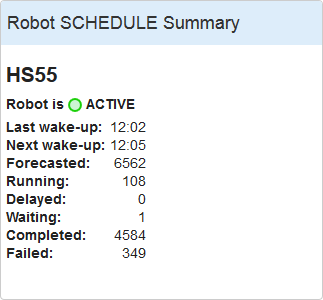

The Robot Schedule Summary as seen on a small screen, such as a mobile phone.

Things you can do:

  • If you see a graph, clicktap any item in the legend to hide or show its data in the graph.

See also:

Robot SCHEDULE job execution
