Messages

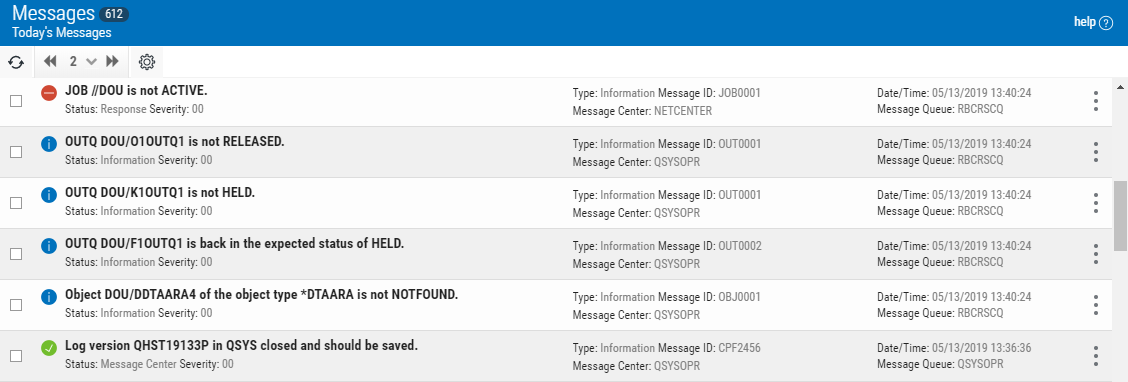

Use the Messages window to work with the history for all messages. This includes seeing how the message was answered in the past.

Getting There: In the Navigation Pane, clicktap Messages under Robot Console.

For a description of the information displayed in the list, see the Data Descriptions table below.

Messages – Data Descriptions

Column	Function
Text	Shows the message text. It can be the original message text or the alternative text defined for the message by a message set.
Status	Shows the current status of the message. The possible statuses are: Waiting - Waiting for a reply. Response - Waiting for a response. Message Default - Reply came from the message default. Message Center - Reply came from a message center. Message Set - Reply came from a message set. System Reply - Reply came from the system reply list. Information - Informational message. Outside Console - Message was answered outside of Robot Console. Sent Reply - Reply sent back to the system that created the message; changes to a status of Message Center when confirmation is received. Robot Alert - Reply came from a Robot Alert pager or via email.
Severity	Displays the possible severity levels: 00 Information 10 Warning 20 Error 30 Severe error 40 Abnormal end of program 50 Abnormal end of job 60 System status 70 Device integrity 80 System alert 90 System integrity 99 Action
Type	Displays the possible message types: Completion Diagnostic Escape Information Inquiry Log Monitoring Information (specific to Robot Console) Log Monitoring Inquiry (specific to Robot Console) Notify Reply Request
Message ID	Shows the message ID.
Message Center	The message center where the message appears.
Date/Time	The date and time the message was sent.
Message Queue	The monitored message queue that received the message.
