Create a New Query
Creating a new query is fast and easy using the Query Builder Wizard Mode (the default). During the creation process you will be able to:
- Add and Join tables
- Choose, edit and create columns
- Create grouped results
- Filter results
- Sort results
To start press Add Query
.

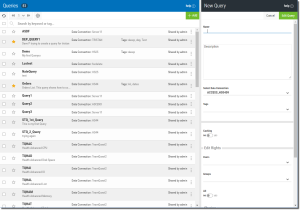

Query Attributes
The New Query panel opens on the right.
Fill in the options (described below) and press Edit Query
to continue.
Options
Name - Enter a name for the query. Only alphanumeric characters (a-z, A-Z, 0-9)—not including punctuation or symbols—are allowed. Spaces are not allowed (an underscore _ is a good substitute).
Description - Enter text to describe the query. Any character value is allowed--even spaces.
Add to Favorites - Click Yes to mark the query as a favorite. This is optional.
Select Data Connection - Use the drop-down to select a data connection (location of the data tables) for the query. See Data Connection Management for more on this topic.
Tags - Add tags to aid in searching. Tags can be created, added and remove as described in Tags. This is optional.
No: Set by default. Result will be processed 'fresh' when the query is run.
Yes: Set to turn caching on for the query. The results will be held based on the Permanence setting below:
Permanent - This option is available only if Caching is turned on. Select if you want the caching for the query to be permanent.
No: This the default. Choose one of the following durations to determine how long to retain the initial results: Daily, Weekly, Monthly, Quarterly, or Yearly.
Yes: The query will always cache its initial result
Caching Explained.
Caching is a mechanism that saves the results of a query for a specific moment in time. It is useful for both for performance reasons and so that the query can freeze a moment in time.
Performance: Consider a scenario where a user creates a query, adds it to a dashboard, and then shares it with the entire company (500 employees) who all open the dashboard at the same time.
If data caching is used, the first time the Query is run the query will execute the SQL statement once, and save the results. Subsequent users will get the cached data, preventing the query from running 500 SQL statements.
Moment in Time: This is an attempt to freeze non-time series data to a specific moment in time. Data often changes over time in the database, but users may want to show the data as it was at the time they authored the query.
For example, a query might show current EOY sales numbers on Dec 31st, 2017. The CEO creates a dashboard over this Query and sends to the whole Company. Over the course of January 2018 additional sales are made, and the data continues to change. If/when a user opens the CEO’s dashboard on January 23rd, 2018, you want them to see the dashboard as the CEO saw it on Dec 31st. To see the same cached data forever, make it Permanent.
Sharing - Select using the drop-down list to share the query with users and/or groups.
Users: Choose any of the listed users to share the query with.
Groups: Choose any of the listed groups to share the query with.
Users: Choose any of the listed users to allow editing rights to the query.
Groups: Choose any of the listed groups to allow editing rights to the query.

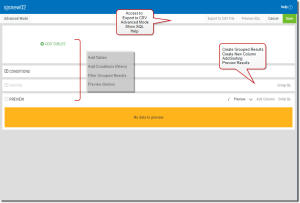

Query Editor
After the initial values (above) are defined and saved the Query Editor displays:
On this screen you can see the following:
- The main design section broken into 'bands' for Tables, Conditions (filters), Filtered Grouped Results, and the Preview.
- Buttons along the top to access Export to CSV, Advanced Mode, Preview SQL and Help.
- Buttons on the bottom two bands to:
From here you can create your query and:
Export to CSV File
Use this option to create and download query results as a .CSV file.
-
Press the Export to CSV File
button. A window displays so you can give the file a name.
-
Press the Download button
and the browser will display the progress.The file is saved in the Windows Downloads folder.
Advanced vs. Wizard Mode
By default the query editor operates in Wizard Mode. This creates logical steps to the creation process (adding tables, joins, columns, sorting, and so on). Switching to Advanced Mode allows you to review and modify the existing SQL.
To access this mode press the Advanced Mode button
at the top of the editor. This button toggles between the two modes. The editor changes to display the SQL.
To switch back press the Wizard Mode button
.
If you make and save any changes to the SQL while in advanced mode, you cannot return to wizard mode

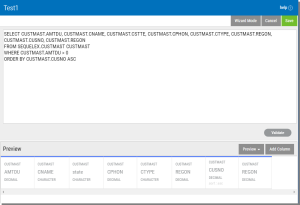

Preview SQL
Press the Preview SQL button
to quickly review the SQL for the query.
The contents of this display cannot be edited.
Preview Results
While in the query editor you can quickly preview the results of the query.
Press the Preview button
to display sample results. Use the down arrow to select the number of sample records to process. The bottom half of the display fills with results.
